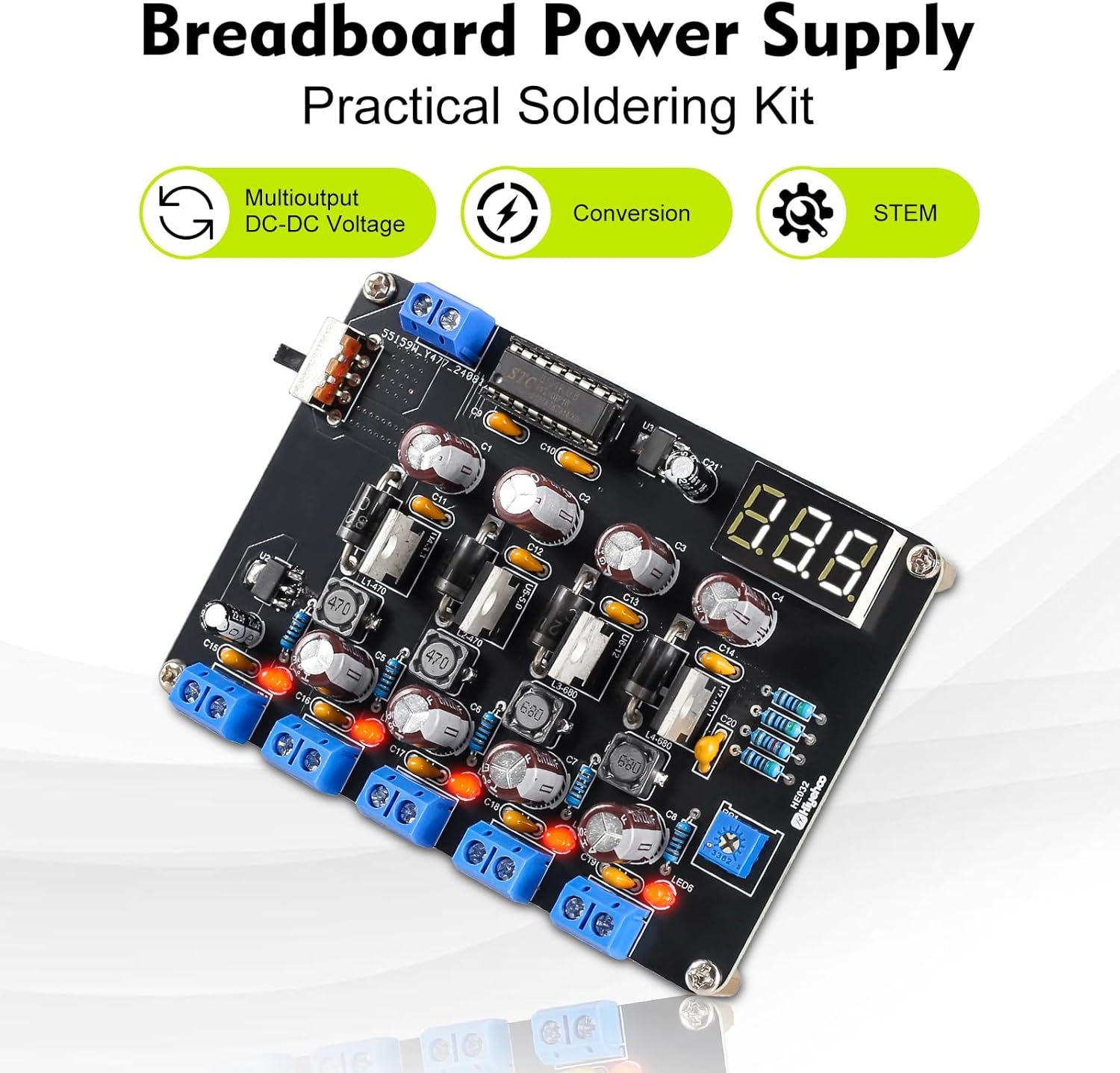

LM2596 Adjustable Power Supply Soldering

LM2596 Adjustable Power Supply Soldering

$20.09
$0.00 $20.09
Sale Sold out
Shipping calculated at checkout.

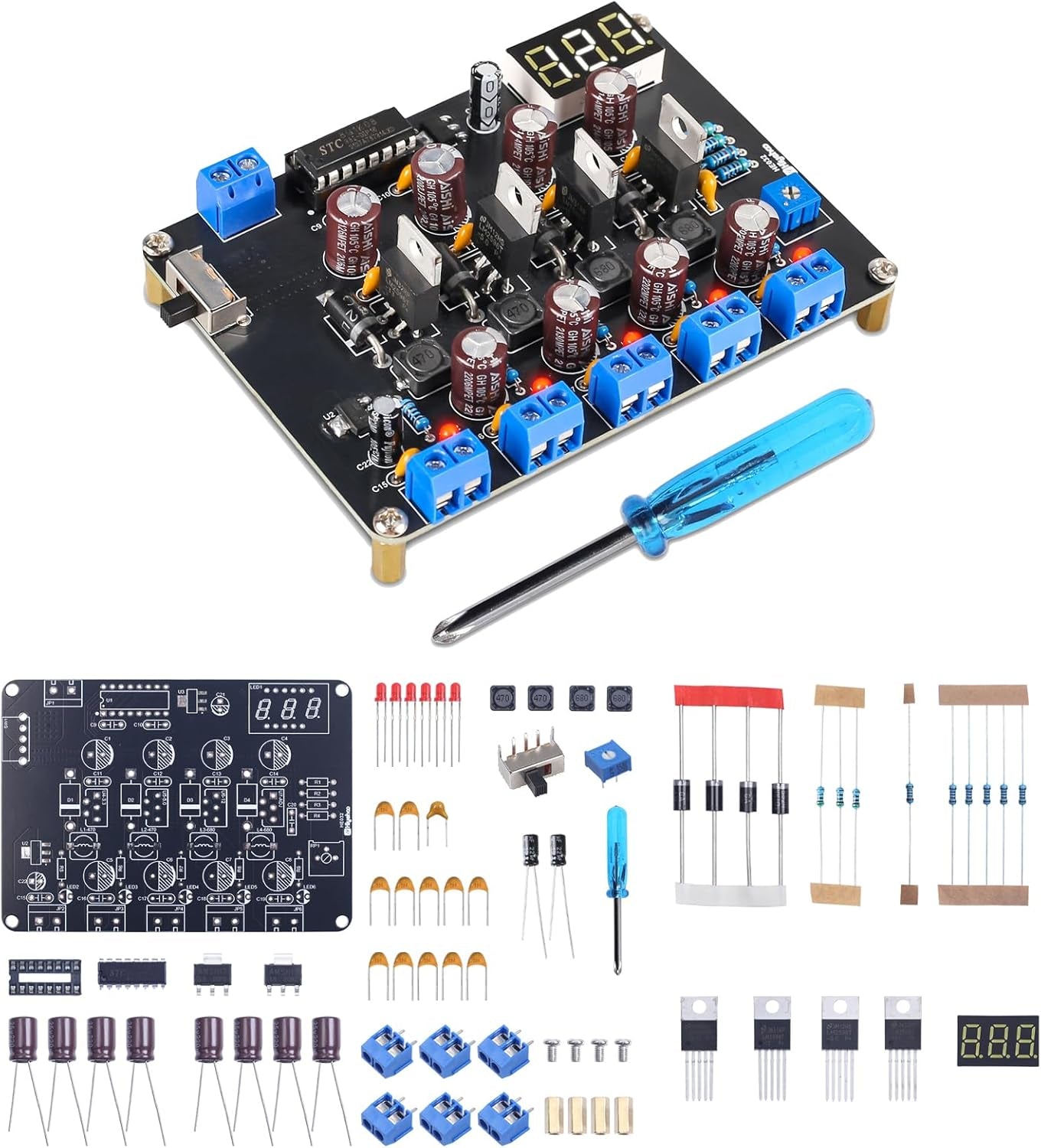

  • 【Ideal for Project-Based Use & Group Applications】DIY Power Supply Kit features a majority of through-hole components, complemented by a few surface-mount devices, making it ideal for soldering practice and highly practical for real-world applications.

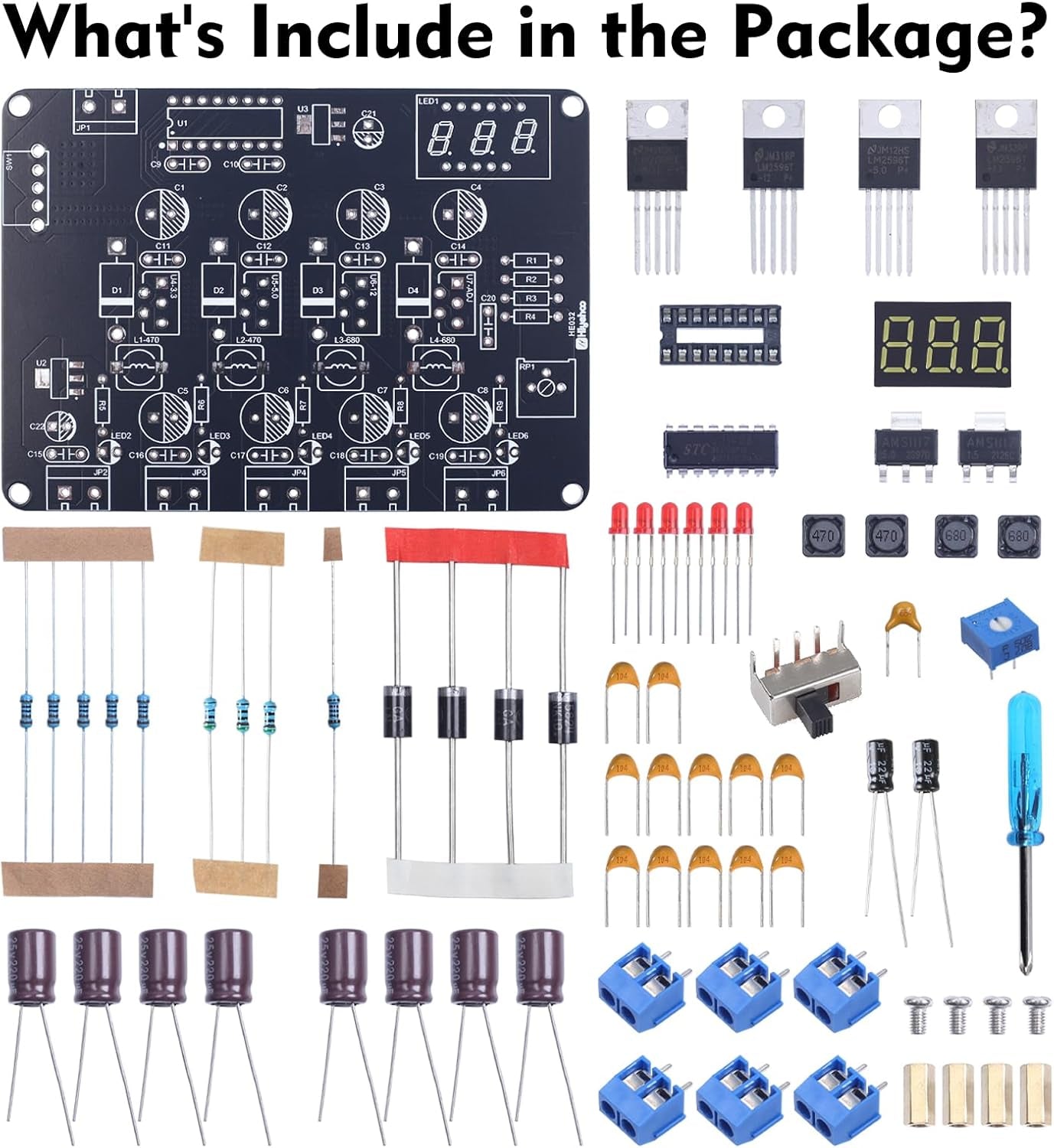

  • 【Manual in Paper】The included paper manual with the package provides you with color-printed soldering steps and detailed textual instructions, ensuring you can clearly understand every detail of the operation.
  • 【Multiple Output】PEMENOL power module offers a total of five independent outputs, including one adjustable voltage output, which greatly meets the diverse needs of electronic DIY, soldering practice, experimental testing, and more.
  • 【ADJ Output Display】LM2596 power supply module features a digital display that clearly shows the voltage values when adjusting the output voltage. The maximum voltage display error is no more than 0.45V.
  • 【Power Switch】Universal power supply module comes with a dedicated power switch, eliminating the need for repetitive wiring and making it more convenient to use.

Product description

Parameter

  • Work Voltage: DC 12-20V
  • Output Power: 36w(Max)
  • OutputCH-1: DC1.5V(1AMax)
  • OutputCH-2: DC3.3V(3AMax)
  • OutputCH-3: DC5.0V(3AMax)
  • OutputCH-4: DC12V(3AMax)
  • Output CH -5: DC 2.2V to Vin

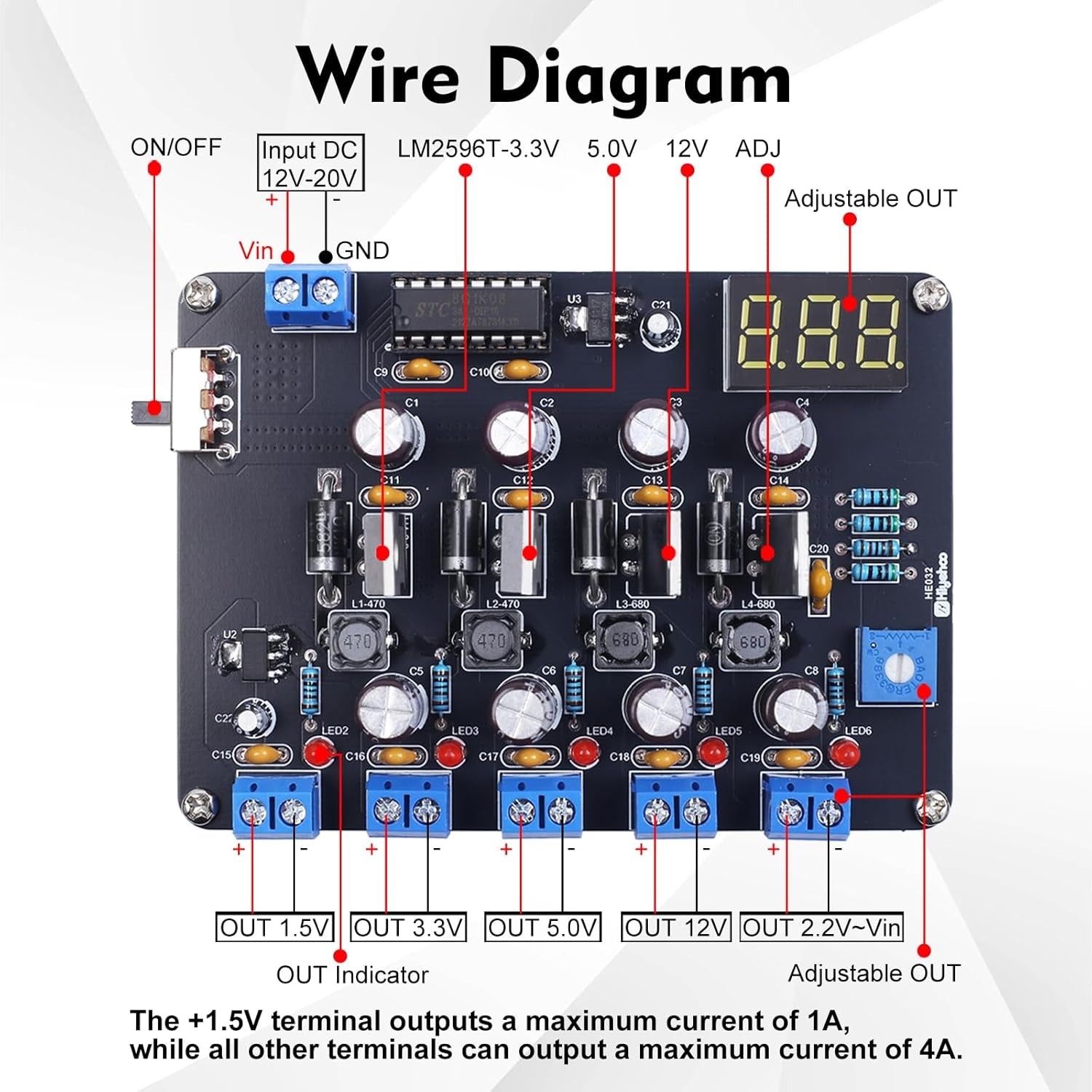

Use Steps

1>. Input Power from ‘15V’ ‘GND’ Terminal.

2>. Turn ON power switch to start working.

Screen and five output indicator turns ON.

3>. From left to right: OUT 1.5V/3.3V/5.V/12V

and the last Terminal for adjustable voltage.

4>. Screen for adjustable voltage. Rotary potentiometer to change output voltage for the rightmost Blue Terminal.

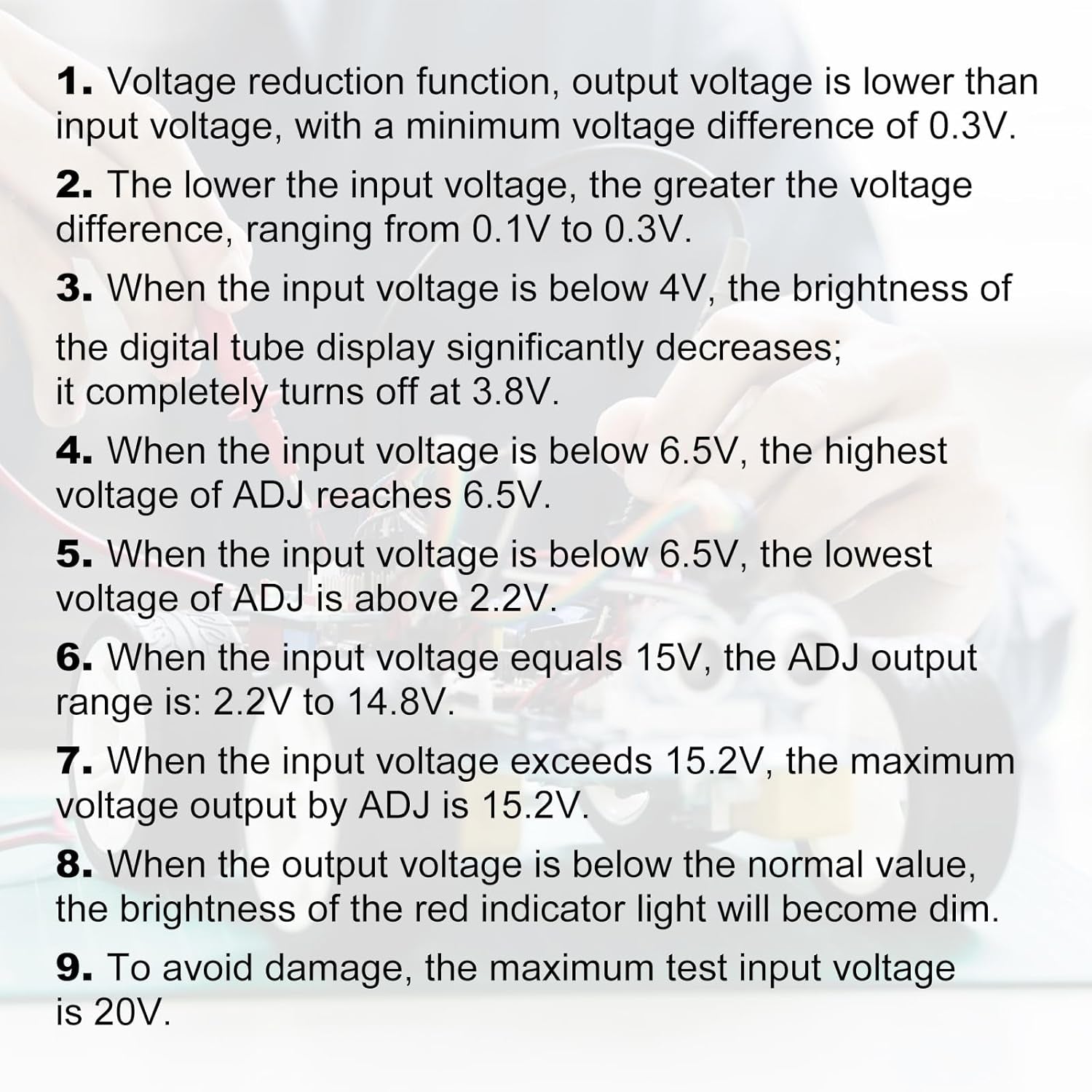

ATTENTION

1. Below 4V input, digital tube brightness drops; off at 3.8V.

2. Below 6.5V input, ADJ maxes at 6.5V; min is above 2.2V.

3. At 15V input, ADJ outputs 2.2V to 14.8V.

4. Above 15.2V input, ADJ caps output at 15.2V.

Note: The lower the input voltage, the greater the voltage difference, ranging from 0.1V to 0.3V.

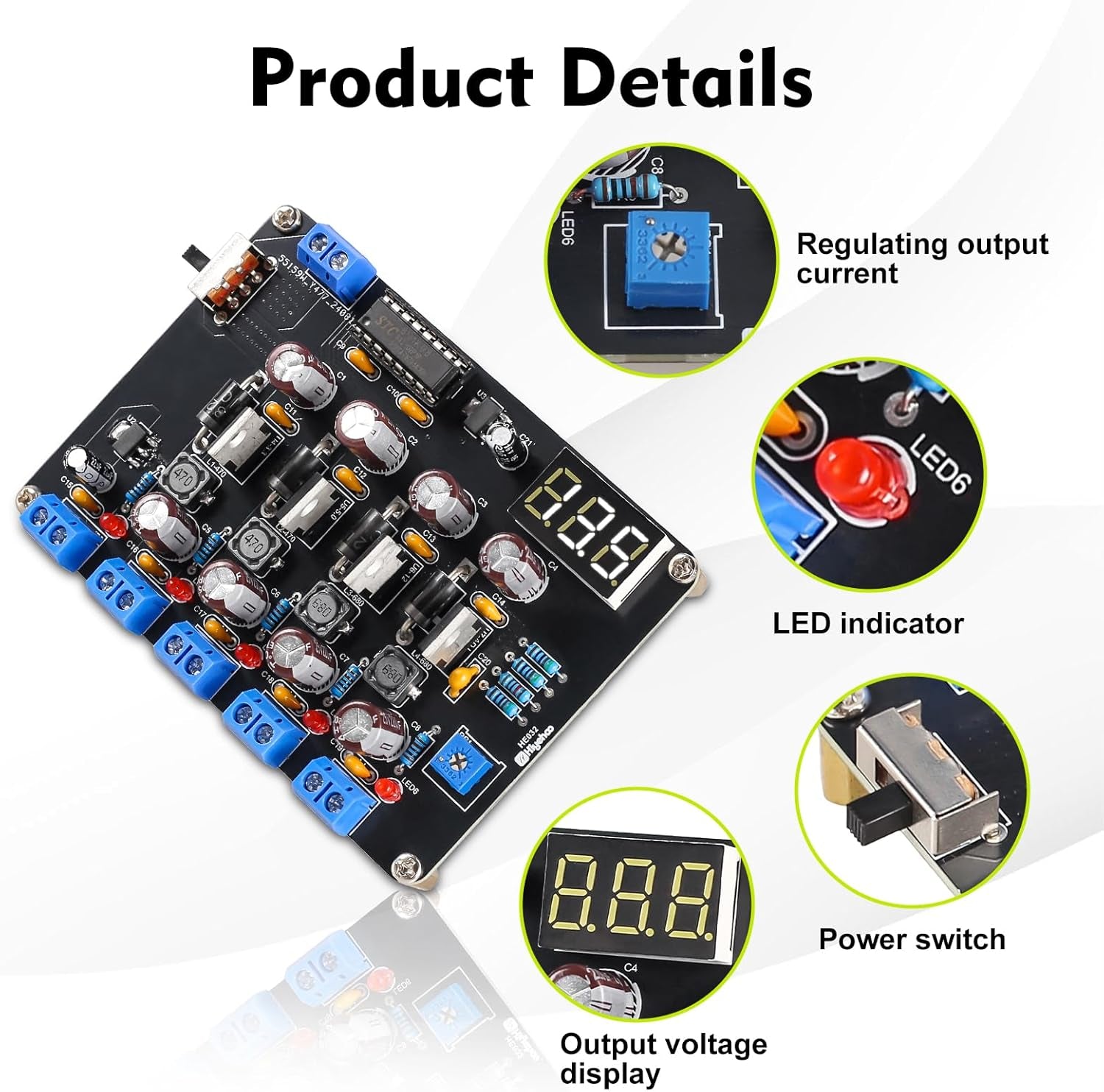

Potentiometer

To change the adjustable voltage.

Power Switch

Turn on/off the module.

Display

Displays the adjusted voltage value.

Note: The error range is 0.1V ~ 0.3V.
